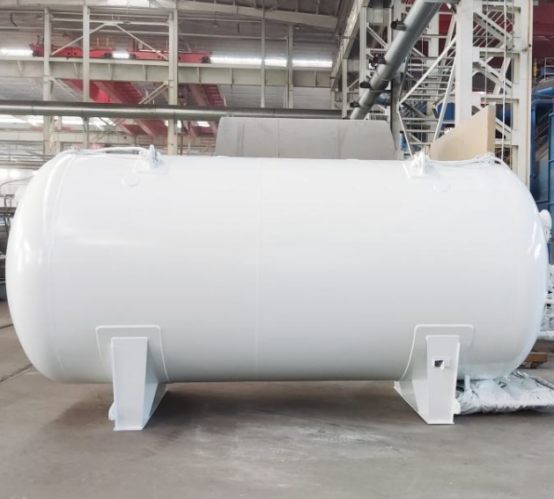

3000L Cryogenic Liquid Storage Tanks For Hospital Use
Product Description
Cryogenic liquid oxygen/nitrogen/argon storage tanks aredouble-layer containers composed ofinner and outer vessels.They are of the vacuum powder insulation type and are avail-able in both vertical and horizontal configurations. Widelyused in industries such as industrial gas, hospitals, metalsmelting, welding, food freezing and transportation, etc.
Product Parameters
| Specifications | Design Pressure (MPa) | Dimensions (L*W*H) (mm) | Weight (Kg) | Effective Volume (m³) | Filling medium |
| 1000L | 1.6 | 1392*1619*2225mm | 910 | 1 | LO2/LN2/LAr/LNG |
| 2.5 | 950 |
| 3.5 | 1035 |
| 2000L | 1.6 | 1650*1873*2826mm | 1340 | 2 |
| 2.5 | 1500 |
| 3.5 | 1650 |
| 3000L | 1.6 | 1900*2080*2900mm | 1652 | 2.85 |
| 2.5 | 1850 |
| 3.5 | 2077 |
| 5000L | 1.6 | 2250*2500*3070mm | 2750 | 4.75 |
| 2.5 | 3050 |
| 3.5 | 3430 |
Packing & Delivery
For packing: We can packing it according to customer requirements.
For shipment: We have an agent forwarder who can help customers find best freight cost, and we suggest customers do business by CIF.
Safety and Reliable Technology
Equipped with both safety valves and pipeline safety valves, our system adopts a dual safety configuration to ensure the operational safety of the tank, With a "main and standby" setup, during regular inspections, one side of the safety valve can be closed while ensuring continuous operation on the other side, effectively preventing potential risks.
Advanced Insulation Design
Adopting a vacuum powder insulation method with a double-layer container structure, the space between the inner and outer containers is filled with perlite and evacuated, ensuring outstanding insulation performance. Precise vacuum standards for different volumes provide optimal insulation effects.
ABOUT US
Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.
The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.
If you want to know about certain products, you can send an email to info@gneeheatex.com.
